EVGA Uneashes the GeForce GTX 1080 Ti K|NGP|N
The GeForce GTX 1080 Ti was designed to be the most powerful desktop GPU ever created, and indeed it was. EVGA built upon its legacy of innovative cooling solutions and powerful overclocking with its GTX 1080 Ti SC2 and FTW3 graphics cards. Despite the overclocking headroom provided by the frigid cooling of EVGA’s patented iCX Technology, the potential of the GTX 1080 Ti still leaves room for one more card at the top…and man is it good to be the K|NG.
Single Graphics Card World Records

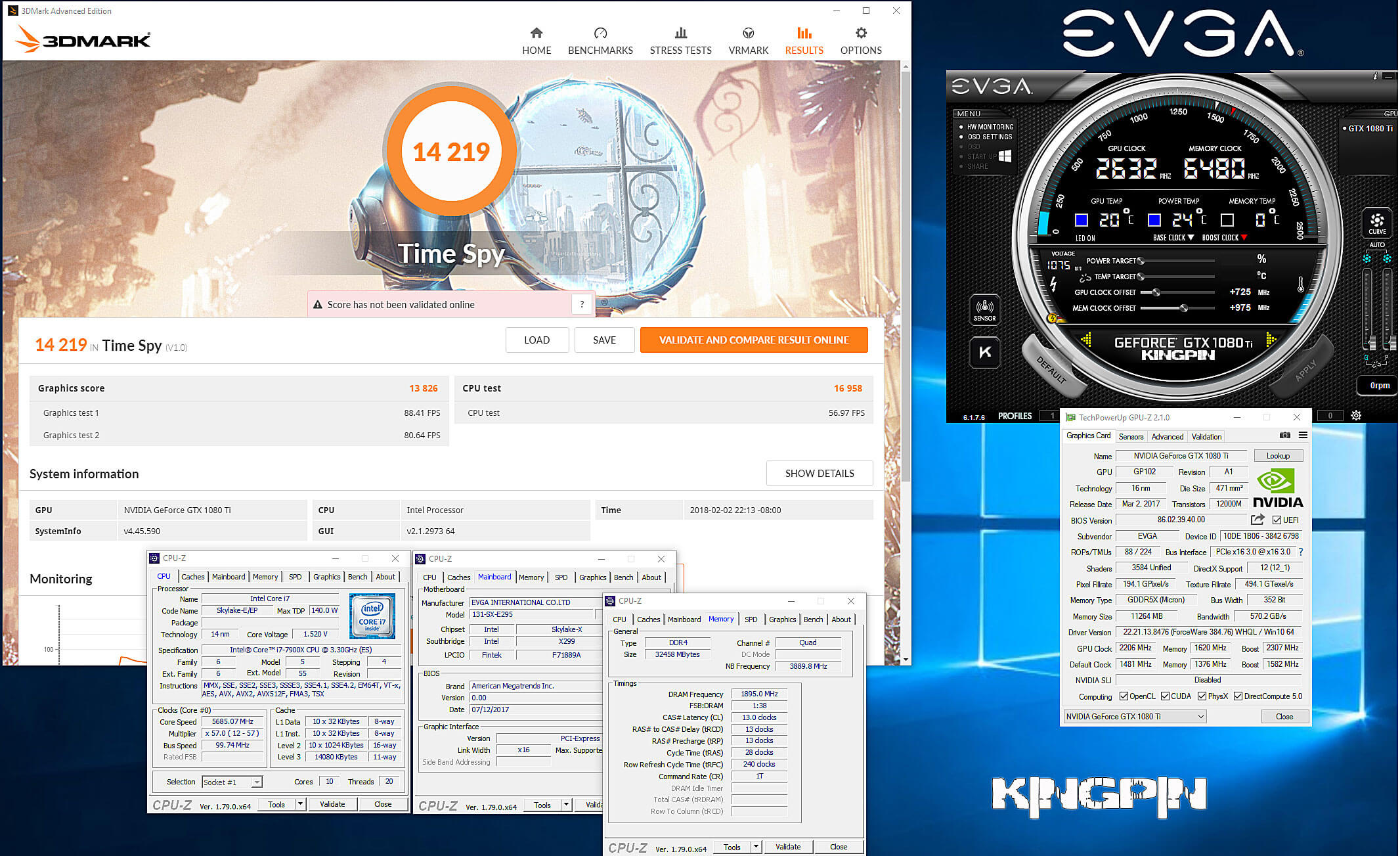

3DMark Time Spy World Record: 14,219
3DMark Fire Strike Extreme World Record: 19,361

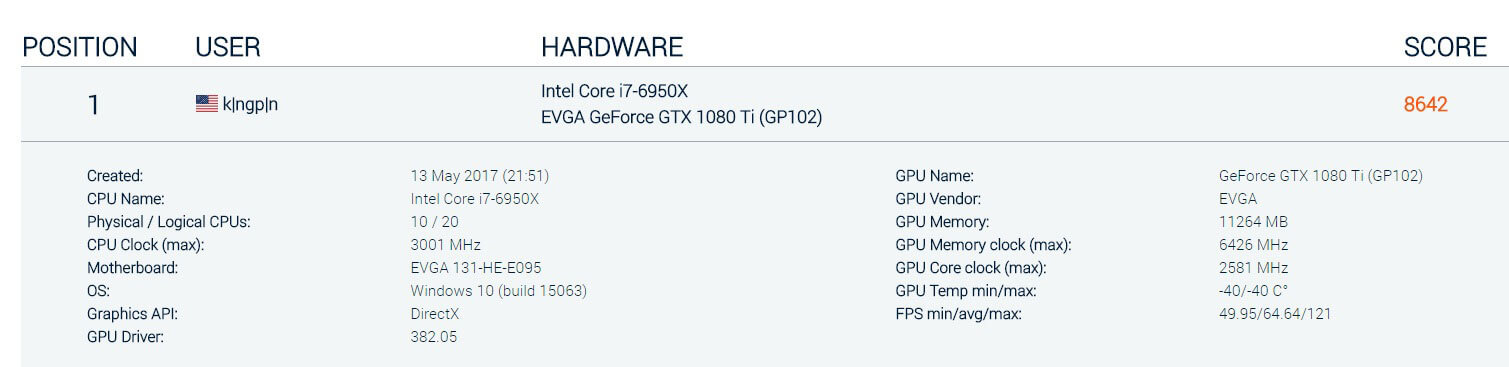

UNIGINE Superposition World Record: 8,642
3DMark Fire Strike World Record: 31,770

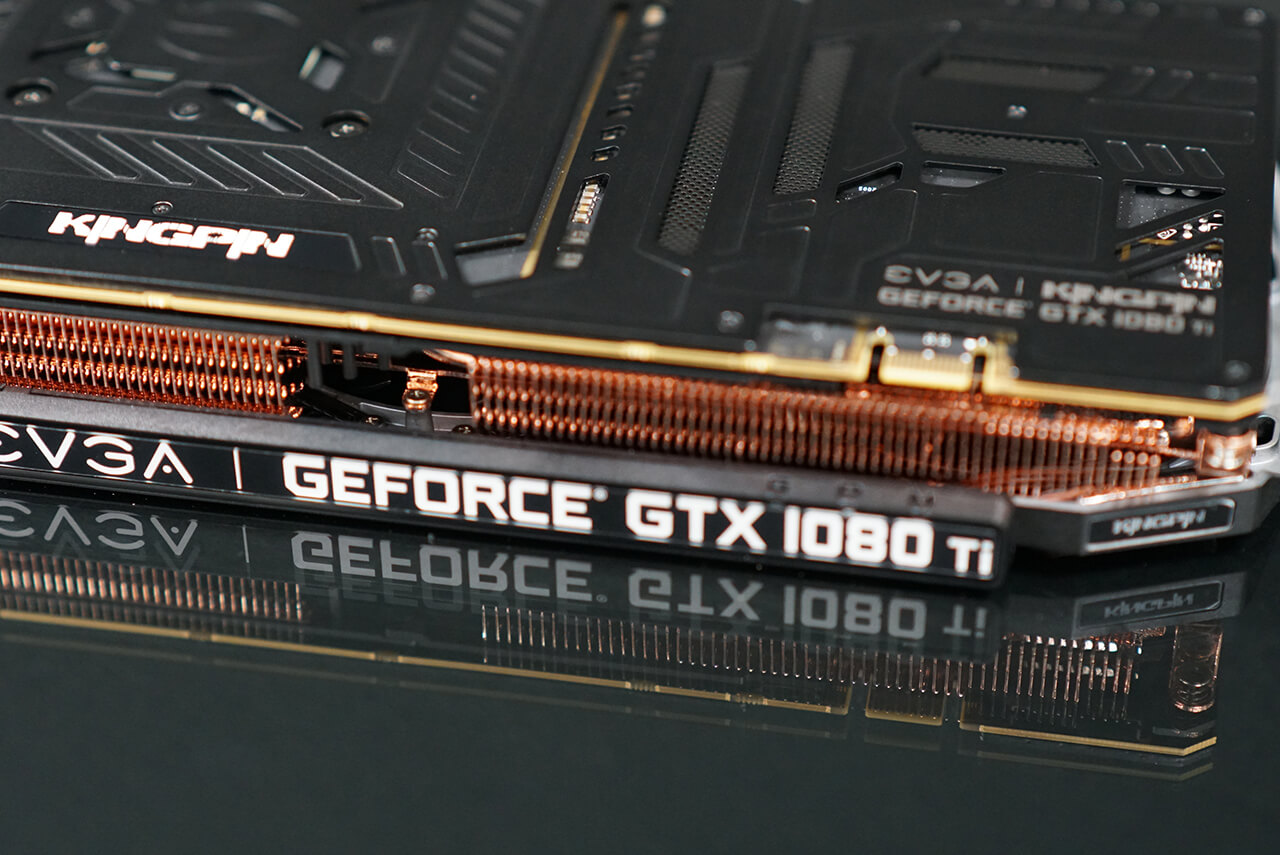

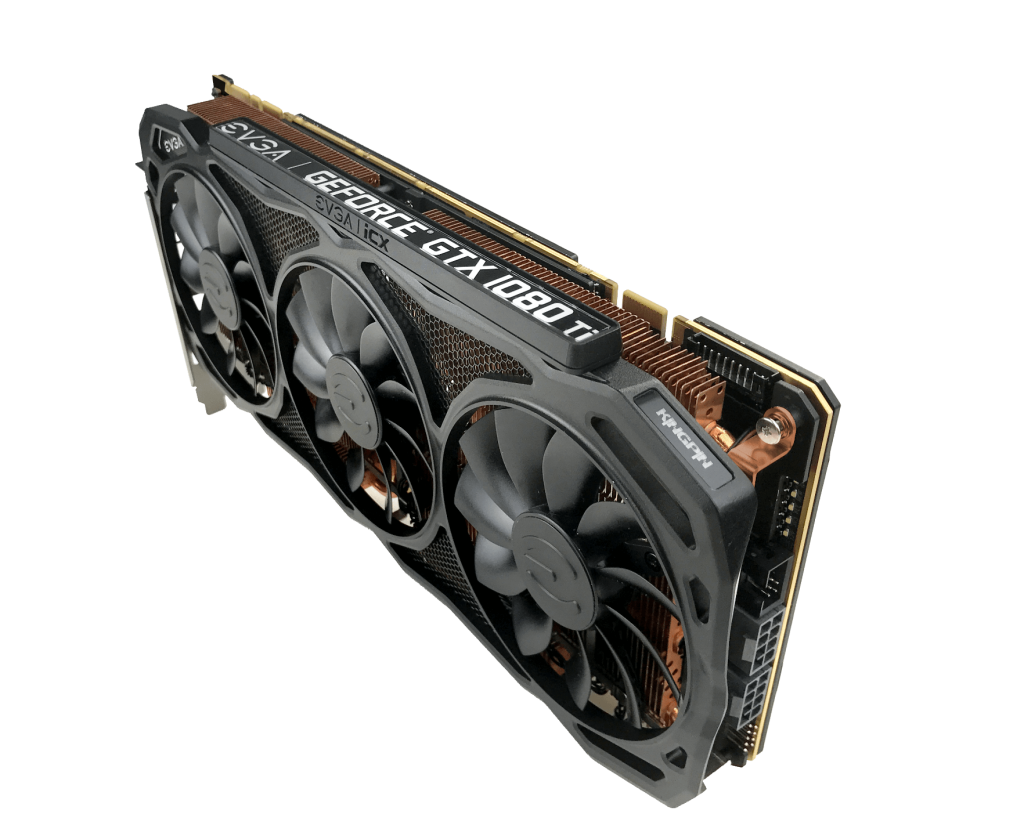

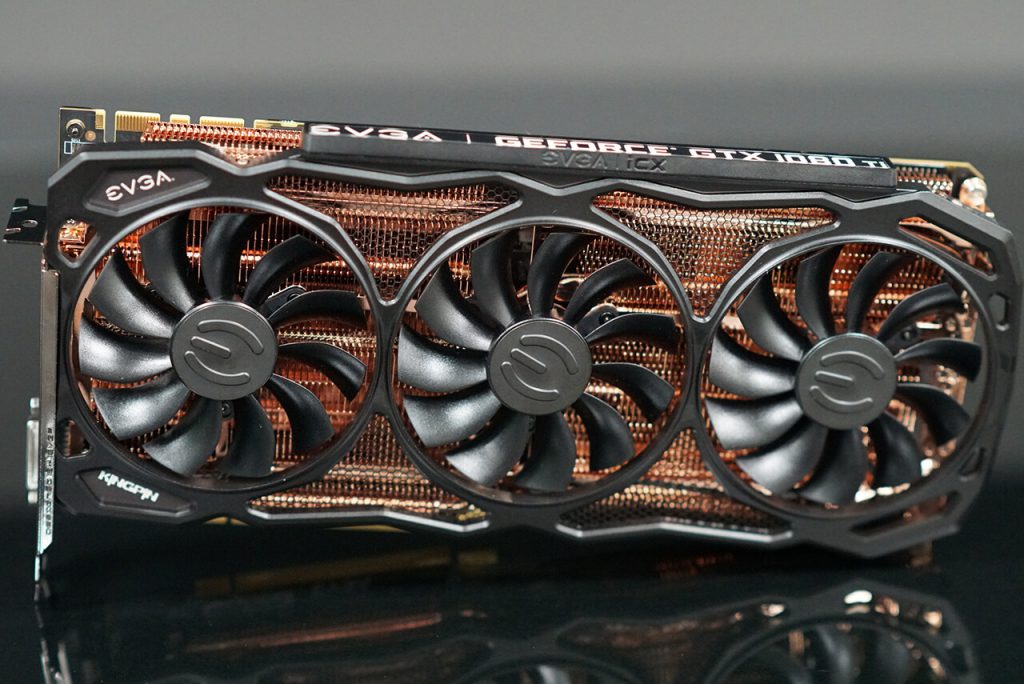

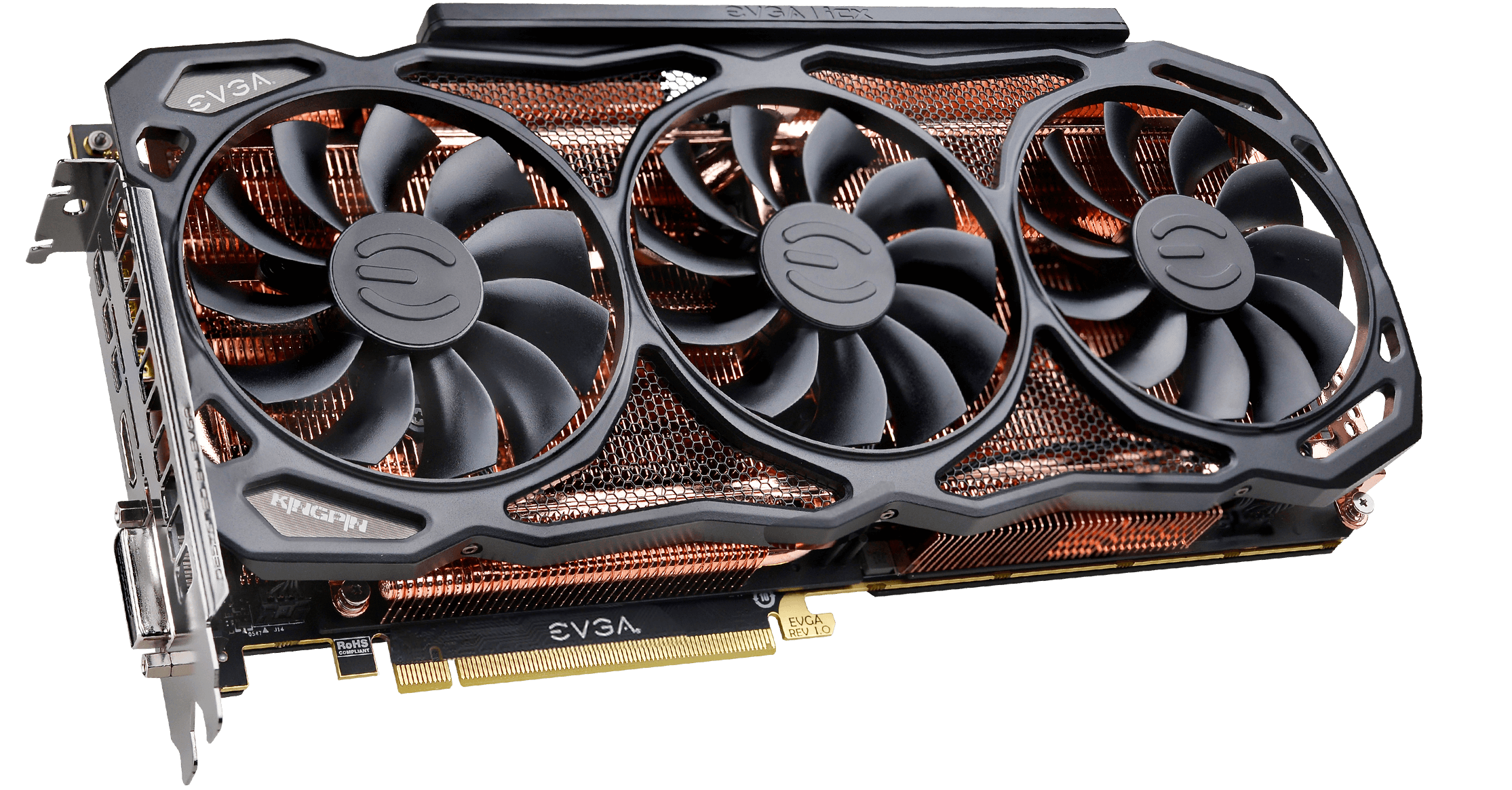

Featuring iCX Technology, a new efficient heatpipe layout, and edge-plated PCB for improved cooling, the GTX 1080 Ti K|NGP|N is ready to go from the moment you power on and also features:
- Guaranteed 2025 MHz+ Overclock
- Highly-Efficient Digital VRM
- Dual-slot profile

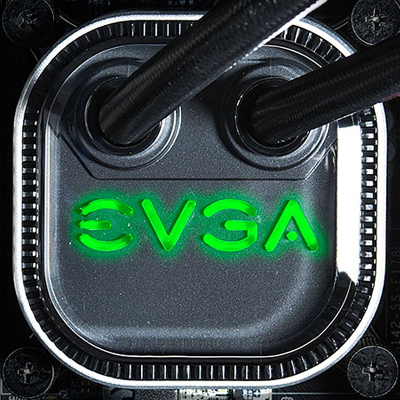

- Single-slot capable with Hydro Copper Waterblock

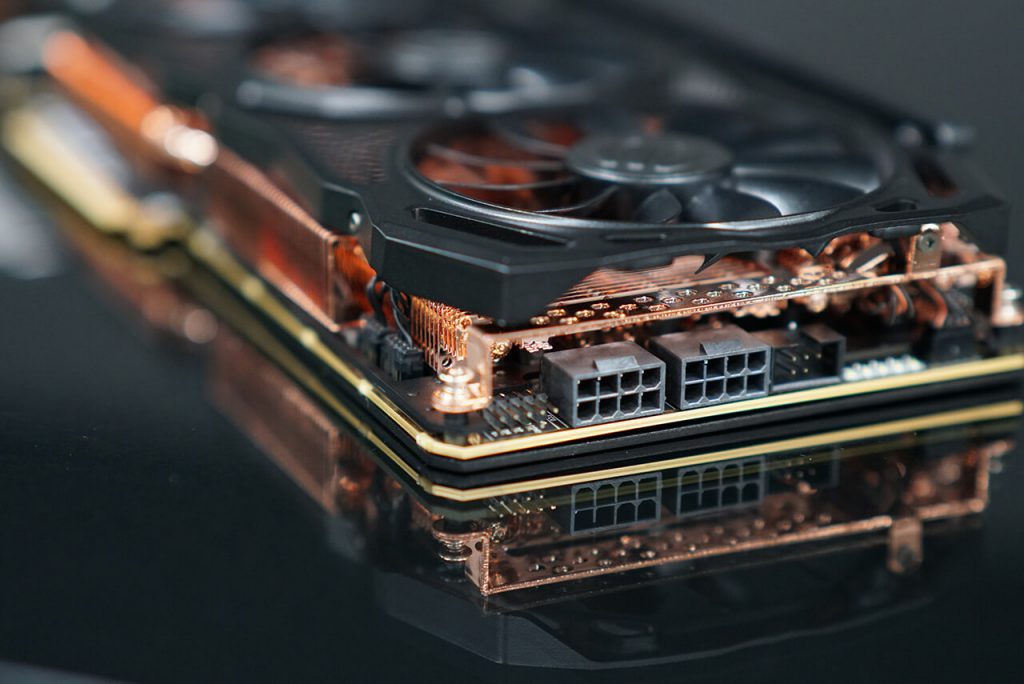

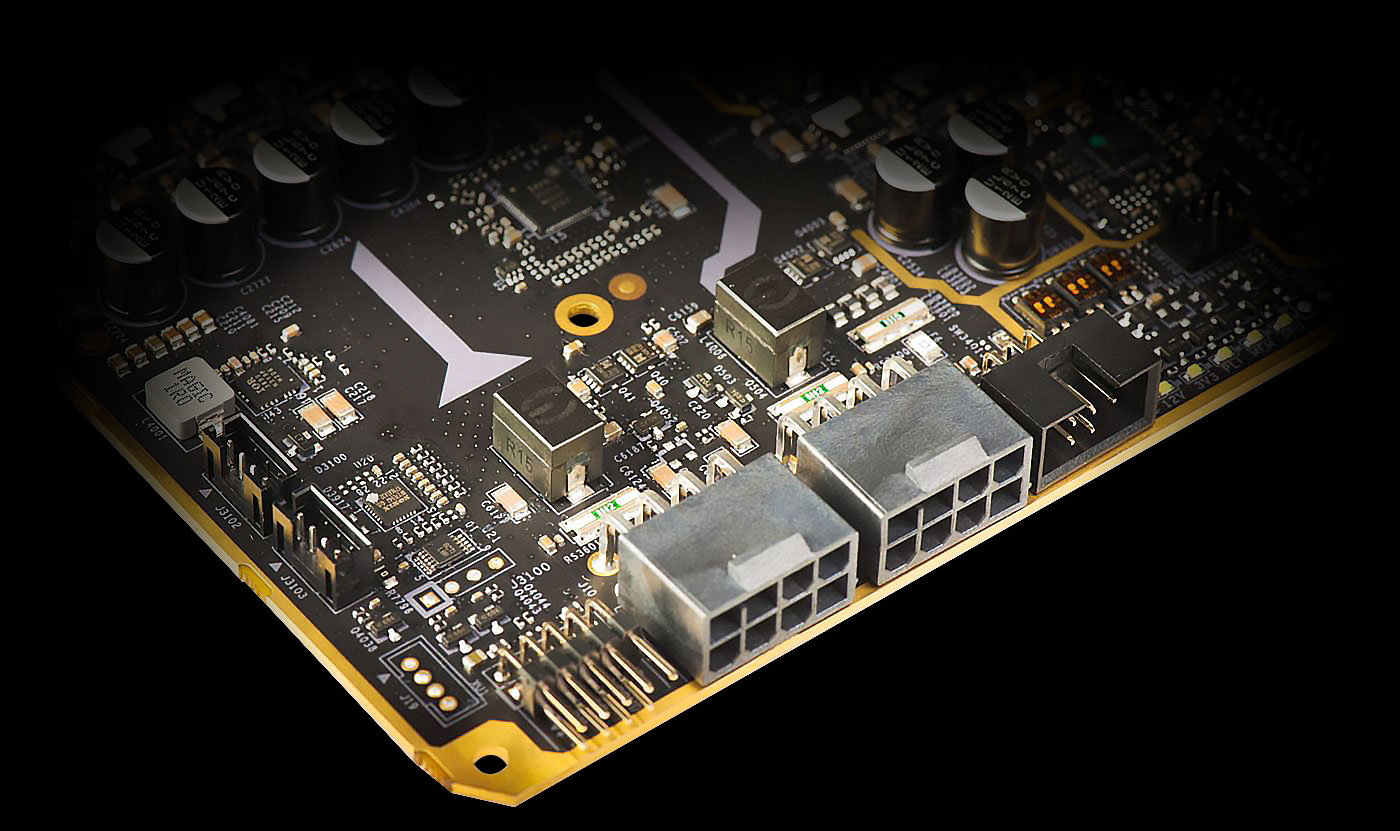

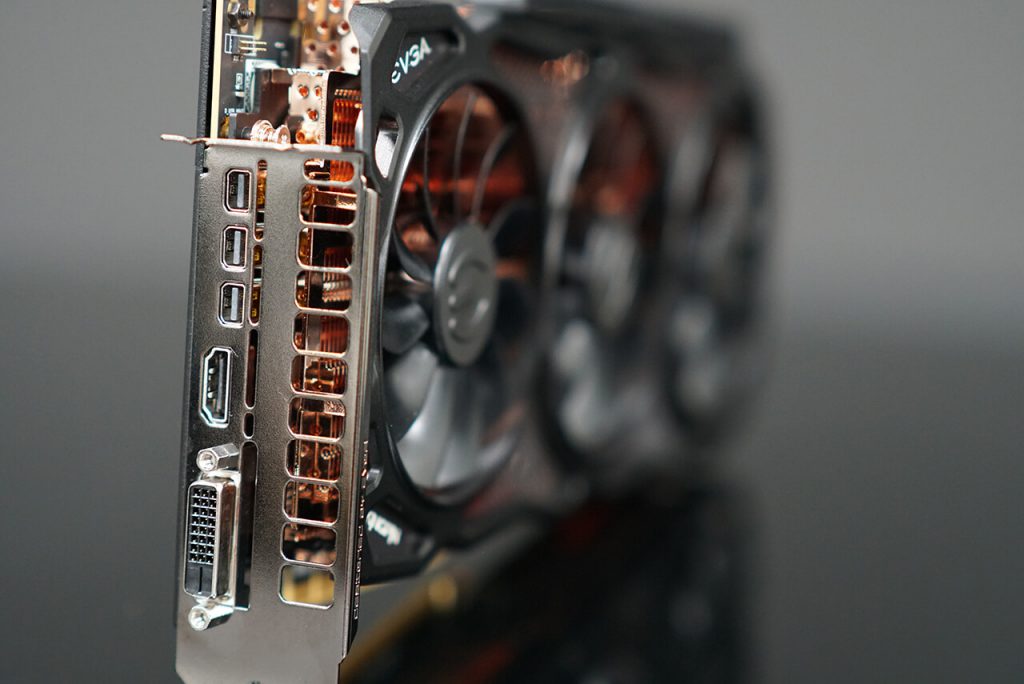

The 1080 Ti K|NGP|N is designed for power, cable management, and control, featuring right-angle PCI-e connectors and an EVBOT connector.

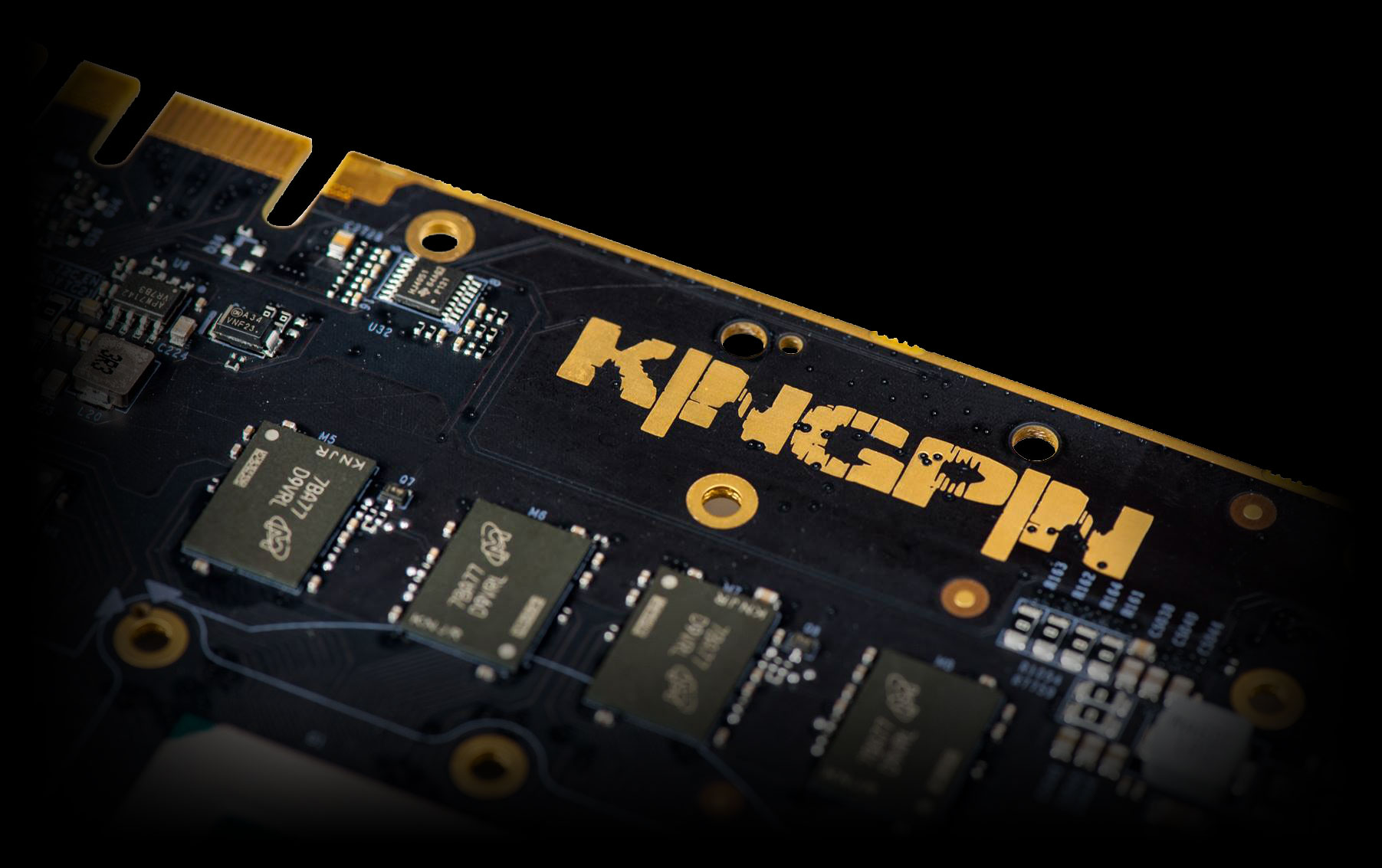

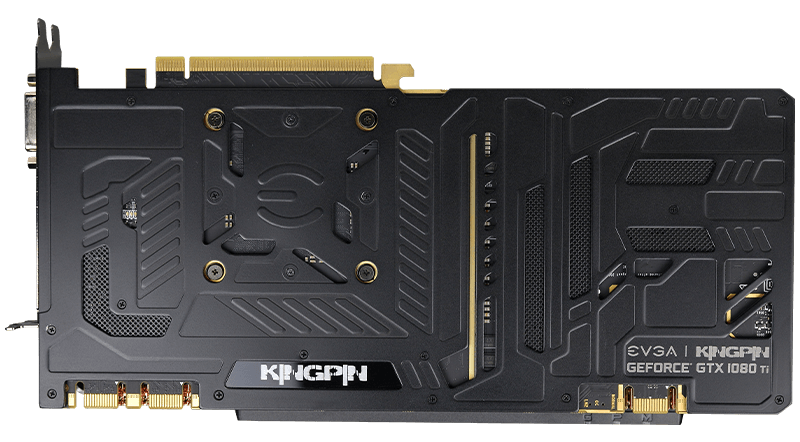

EVGA’s K|NGP|N products are known for their distinctive appearances, and the GTX 1080 Ti K|NGP|N is no exception featuring its unmistakable mark of quality and performance.

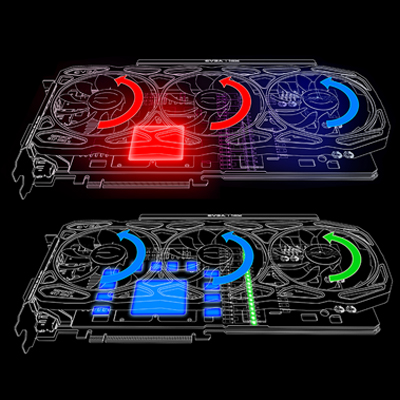

No card is worthy enough to take the throne without EVGA’s iCX Technology, and the GTX 1080 Ti K|NGP|N reigns supreme. Featuring a total of 11 global patents (pending and granted), iCX from EVGA is efficiency perfected. With 9 additional sensors embedded on the PCB, a newly designed die-cast baseplate and backplate, purposefully-directed airflow chambers, and full control using EVGA Precision XOC, EVGA’s iCX is the very definition of Interactive Cooling.

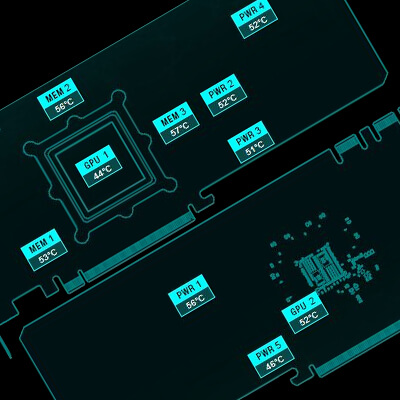

9 Thermal Sensors
Async Fan Control

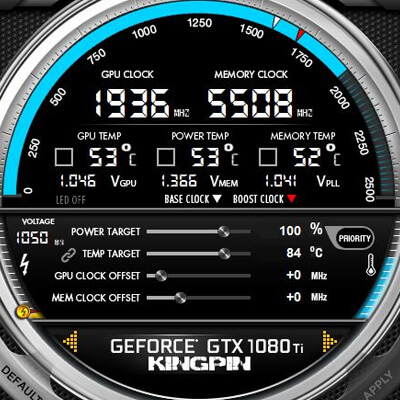

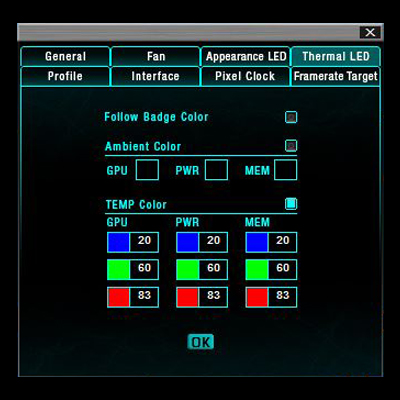

Full Control With EVGA Precision XOC
Interactive Cooling
Peace Of Mind Gaming
Sync With Other Devices
Core
3584 CUDA Cores
Base Clock: 1582 MHz
Boost Clock: 1695 MHz
Bus: PCI-E 3.0
2-way SLI Ready
Memory
Memory Detail: 11264 MB GDDR5X
Memory Bit Width: 352 Bit
Memory Clock: 11016 MHz
Memory Speed: 0.2 ns
Memory Bandwidth: 484 GB/s
Key Features
Simultaneous Multi-Projection
VR Ready
NVIDIA Ansel
NVIDIA SLI w/ HB Bridge Support
NVIDIA G-SYNC
NVIDIA GameStream
NVIDIA GPU Boost 3.0
Microsoft DirectX 12 API
Vulkan API
OpenGL 4.5 Support
Max Digital Resolution – 7680×4320
HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI
Built for EVGA Precision XOC
Asynchronous Fans
9 additional temp sensors to monitor Memory and VRM
GPU / Memory / PWM Thermal Status Indicator LEDs
New vented heatsink fin design and pin fins for optimized airflow

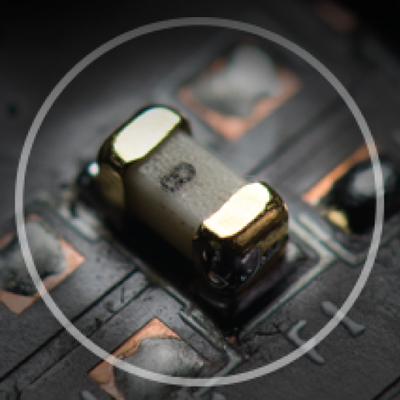

Safety fuse to protect components from damage due to improper installation or other component failures
Redesigned cooling with L-shaped contact fins to improve contact surface area for better heat dissipation
EVGA iCX Technology
